Kia Picanto (JA): Sunroof / Sunroof Sunshade
Repair procedures
| Replacement |
| 1. | Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly")
|

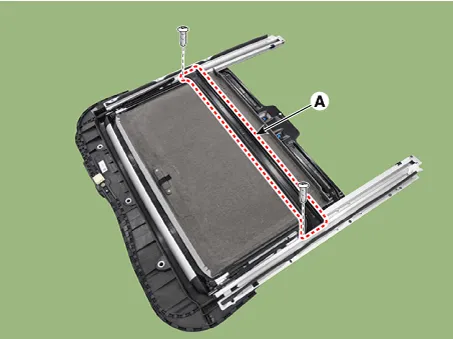

| 2. | Remove the drip rail assembly (A) after loosening the mounting screws.
|

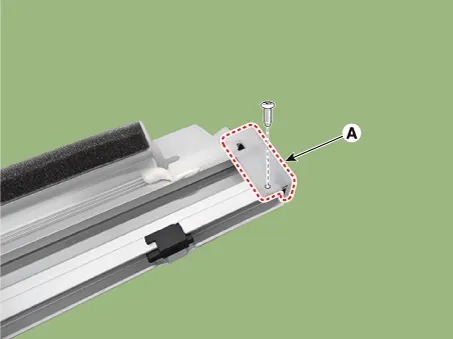

| 3. | Separate the rear drip (A) after loosening the mounting screws.
|
| 4. | Remove the stopper (A) by pushing it in the direction of the arrow.
|

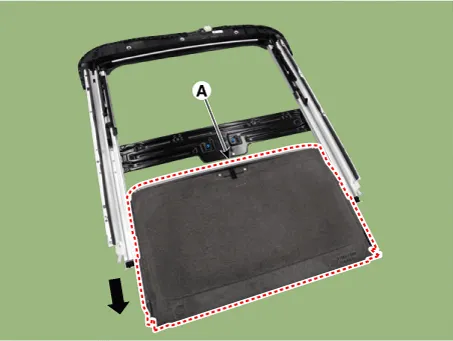

| 5. | Remove the sunroof sunshade (A) by pushing it backward.
|
| 6. | Install in the reverse order of removal.
|
Components and components location Components 1. Sunroof assembly Repair procedures Replacement • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Repair procedures Replacement 1.Remove the sunroof assembly. (Refer to Sunroof - "Sunroof Assembly") 2.Remove the sunroof sunshade.
Other information:
Kia Picanto (JA) 2017-2025 Service & Repair Manual: AVN Remote Controller
Components and components location Components 1. Left Remote Control Switch (Audio + Hands free + Voice) 2. Right Remote Control Switch (Cruise+Trip Computer) Schematic diagrams Circuit Diagram [Audio] [Audio + Bluetooth] [Audio + Bluetooth + Voice] [Trip (2 Button) + SEG LCD Cluster]
Kia Picanto (JA) 2017-2025 Service & Repair Manual: Parking Assist Sensor
Components and components location Components Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the rear bumper assembly. (Refer to Body - "Rear Bumper Assembly") 3.Disconnect the connector (A) from the ultrasonic sensor.
