Kia Picanto (JA): Body (Interior and Exterior) / Floor Console
Components and components location
| Components |
| [M/T] |
| 1. Floor console assembly 2. Rear console tray mat 3. Parking brake cover | 4. Floor console front bezel assembly 5. Console indicator cover [M/T] |

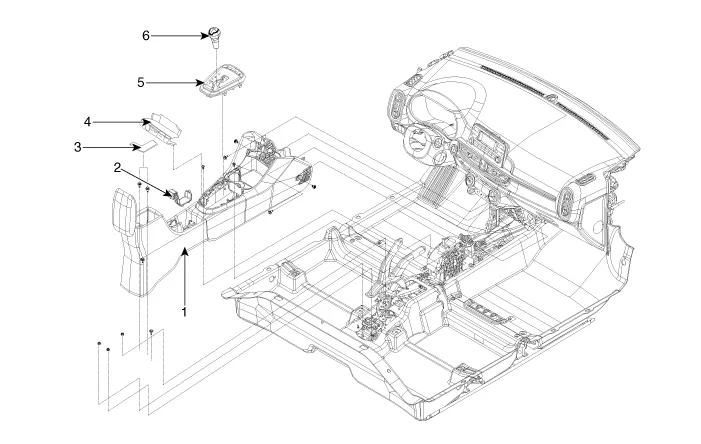

| [A/T] |
| 1. Floor console assembly 2. Parking brake cover 3. Rear console tray mat | 4. Floor console front bezel assembly 5. Console indicator cover [M/T] 6. Gear knob |
Components and components location Component Location 1. Floor carpet assembly Repair procedures Replacement Put on gloves to protect your hands.
Components and components location Component Location 1. Floor console assembly Repair procedures Replacement Put on gloves to protect your hands.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Horn
Components and components location Component Location 1. Horn switch 2. Horn relay 3. Horn 4. Clock spring Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the engine room under cover. G 1.
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Rear Washer Switch
Repair procedures Inspection Multifunction Switch Inspection 1. Check for continuity between the terminals in each switch position as shown below. Rear Wiper & Washer Switch[LHD] [RHD] Inspection (With KDS/GDS) 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS/GDS).
