| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - "Steering Column Shroud Panal")
|

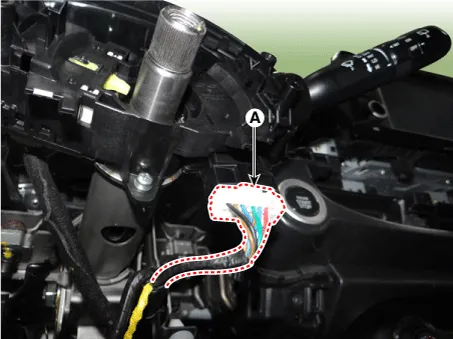

| 3. | Disconnect the wiper switch / washer switch connector (A).
|

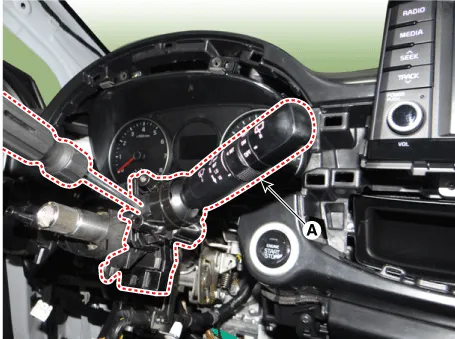

| 4. | Remove the wiper switch / washer switch (A) by pushing the lock pin.
|
| Installation |
| 1. | Install in the reverse order of removal.
|
| 2. | Check
if the steering wheel remote control, airbag system and horn are
normally operating after turning the handle all the way left and right
when installing air bag module is done. |
| Inspection |

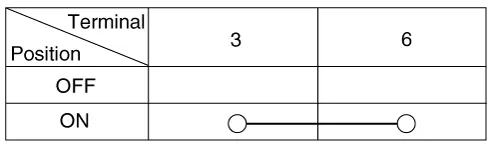

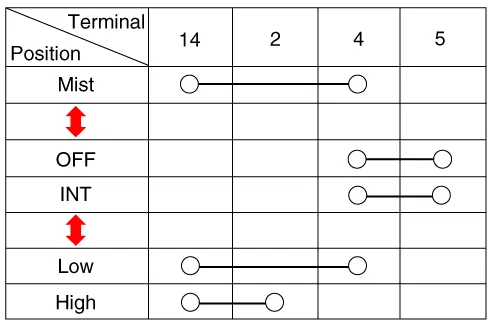

| 1. | Check for continuity between the terminals in each switch position as shown below.
Front Wiper & Washer Switch [LHD]
[RHD]

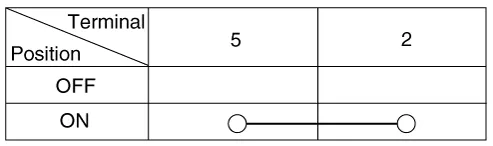

Front Washer Switch [LHD]
[RHD]
Rear Wiper & Washer Switch [LHD]
[RHD]
|
| 1. | In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS/GDS). The diagnostic system(KDS/GDS) provides the following information.
|
| 2. | Select the 'Car model' and the 'Body Control Module (BCM)' to be checked in order to check the vehicle with the tester. |
| 3. | Select the 'Current Data' menu to search the current state of the input/output data.
|
