Kia Picanto (JA): Body (Interior and Exterior) / Tailgate
Repair procedures
| Adjustment |

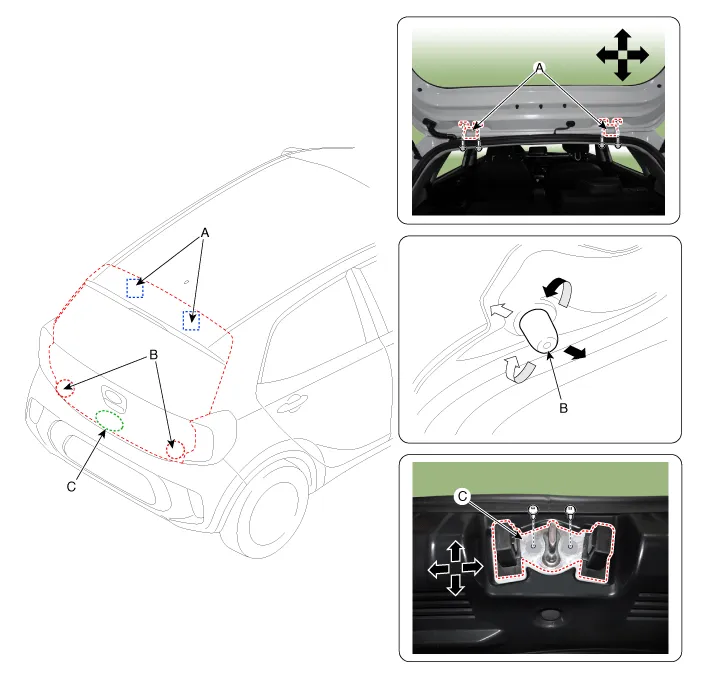

| 1. | After loosening the tailgate hinge (A) mounting bolts, adjust the tailgate by moving it up and down, or right and left. |
| 2. | Adjust the tailgate height by turning the tailgate overslam bumpers (B). |
| 3. | After
loosening the tailgate striker (C) mounting bolts, adjust the tailgate
striker by moving it up and down, or right and left.
|
