Kia Picanto (JA): Blower / Power Mosfet
Repair procedures
| Inspection |
| 1. | Ignition "ON" |
| 2. | Manually operate the control switch and measure the voltage of blower motor. |
| 3. | Select the control switch to raise voltage until high speed.
|
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the glove box housing.
(Refer to Body - "Glove Box Housing")
|

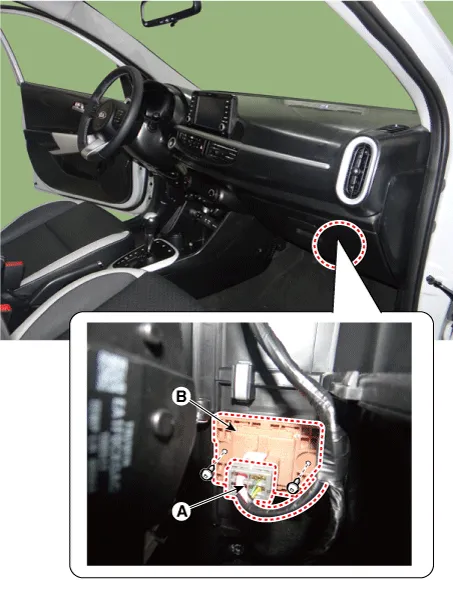

| 3. | Disconnect the connector (A) and then remove the power mosfet (B) after loosening the mounting screws.
|
| 4. | Install in the reverse order of removal. |
