Kia Picanto (JA): Tailgate / Tailgate Trim

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Tailgate / Tailgate Trim

Components and components location

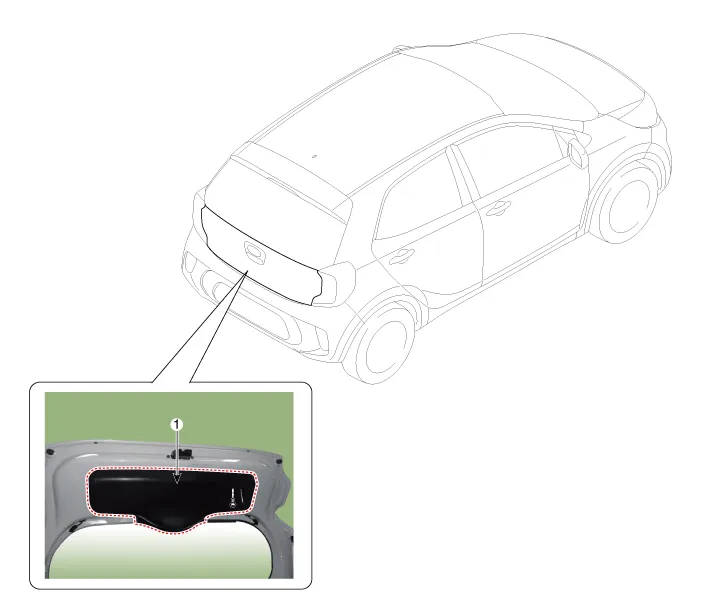

Component Location

1. Tailgate trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the tailgate trim (A).

Install in the reverse order of removal.

Replace any damaged clips.
