Kia Picanto (JA): Sunroof / Sunroof Deflector
Repair procedures
| Replacement |
| 1. | Open the glass fully. |

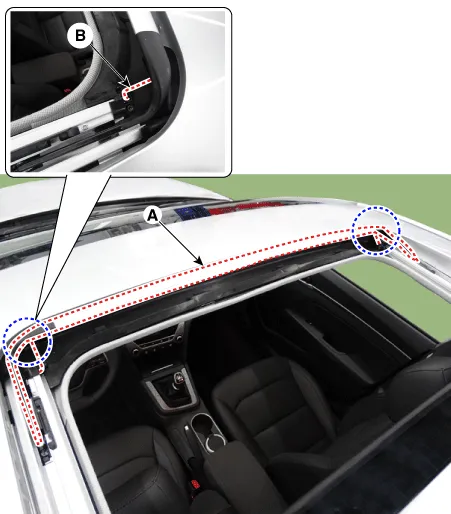

| 2. | Remove the mounting pins (B), and then remove the deflector (A).
|
| 3. | Install in the reverse order of removal. |
