Kia Picanto JA: Sunroof / Sunroof Glass

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body (Interior and Exterior) / Sunroof / Sunroof Glass

Components and components location

Components

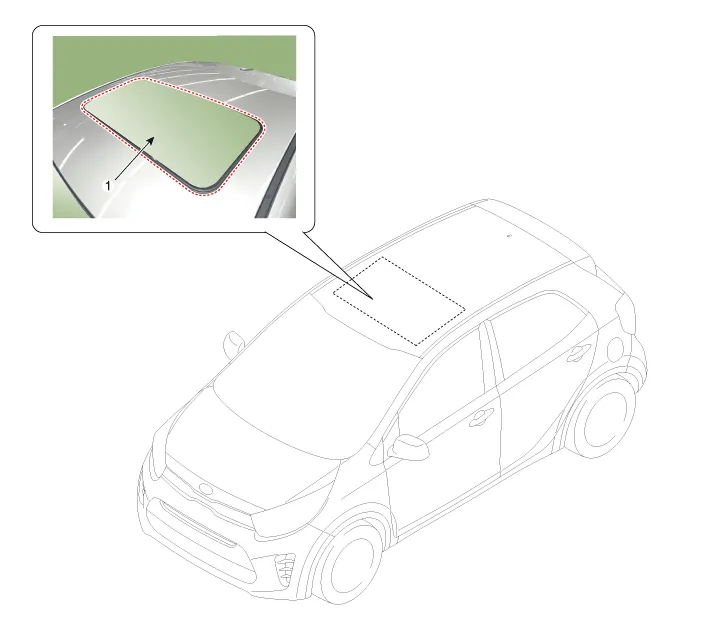

1. Sunroof glass

Repair procedures

Replacement

Put on gloves to protect your hands.

1.	Close the sunroof glass completely by pressing the sunroof switch.

Loosen the mounting screws (A) and remove the sunroof glass (B).

Do not damage the roof panel.

Install in the reverse order of removal.

After replacing the movable glass adjust the alignment if needed.
