Kia Picanto (JA): Lubrication System / Oil Cooler

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Engine Mechanical System / Lubrication System / Oil Cooler

Repair procedures

Removal
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
2.
Drain the coolant.
(Refer to Cooling System - "Coolant")
3.

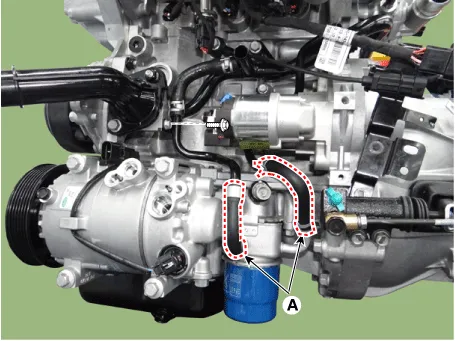

Disconnect the oil cooler coolant hoses (A).

4.
Remove the oil filter.
(Refer to Lubrication - "Engine Oil")
5.
Loosen the mounting bolt (A) and remove the oil cooler assembly (B).

Installation
1.

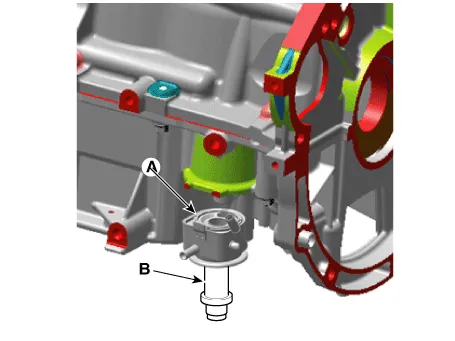

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler with a fixing bolt (B).
Tightening torque :
44.1 - 53.9 N·m (4.5 - 5.5 kgf·m, 32.5 - 39.8 lb·ft)


Fix position of oil cooler stopper (A) where oil cooler resists on ladder frame stopper (B).

2.
Apply a light coat of engine oil to the oil filter packing surface and then install the oil filter.
(Refer to Lubrication - "Engine Oil")
3.
Connect the oil cooler coolant hoses (A).

4.
Fill the radiator with coolant and check for leakage.

    Repair procedures Removal and Installation    Do not disassemble the oil pump (A) from timing chain cover & oil pump assembly because it is supplied as timing chain cover & oil pump assembly & oil pump assembly.

    Components and components location Components 1. Front oil seal 2. Timing chain cover & oil pump assembly 3. Timing chain tensioner 4. Timing chain tensioner arm 5.
