Kia Picanto (JA): Engine Mechanical System / Timing System
Components and components location
| Components |

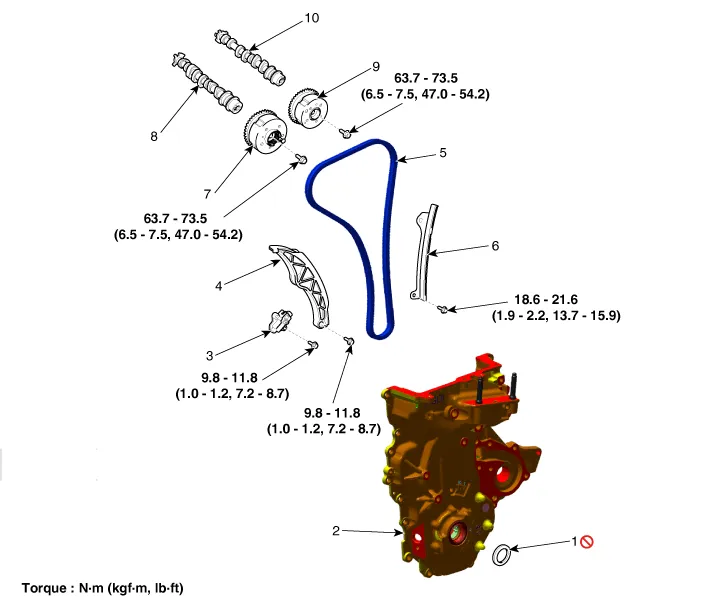

| 1. Front oil seal 2. Timing chain cover & oil pump assembly 3. Timing chain tensioner 4. Timing chain tensioner arm 5. Timing chain | 6. Timing chain guide 7. Exhaust CVVT assembly 8. Exhaust camshaft 9. Intake CVVT assembly 10. Intake camshaft |
Repair procedures Removal 1.Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") 2.
Repair procedures Replacement 1.Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley") 2.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Immobilizer Control Unit
Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") 3.Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Smart Key Diagnostic
Repair procedures Inspection Self Diagnosis With Scan Tool It will be able to diagnose defects of SMART KEY system with KDS/GDS quickly. KDS/GDS can operates actuator forcefully, input/output value monitoring and self diagnosis. The following three features will be major problem in SMART KEY system.
