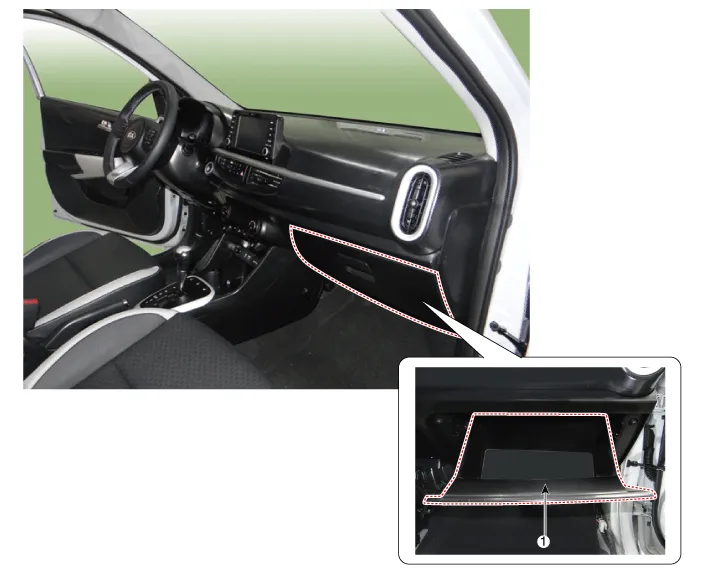

| Component Location |

| 1. Glove box housing assembly |
| Replacement |
Put on gloves to protect your hands. |
|
| 1. | Remove the crash pad side cover [RH] (A) by using a remover.
|
| 2. | Remove the glove box stopper (A) from the crash pad.
|
| 3. | Remove the glove box (A).
|
| 4. | Install in the reverse order of removal.
|
