Kia Picanto (JA): Suspension System / Front Suspension System
Components and components location

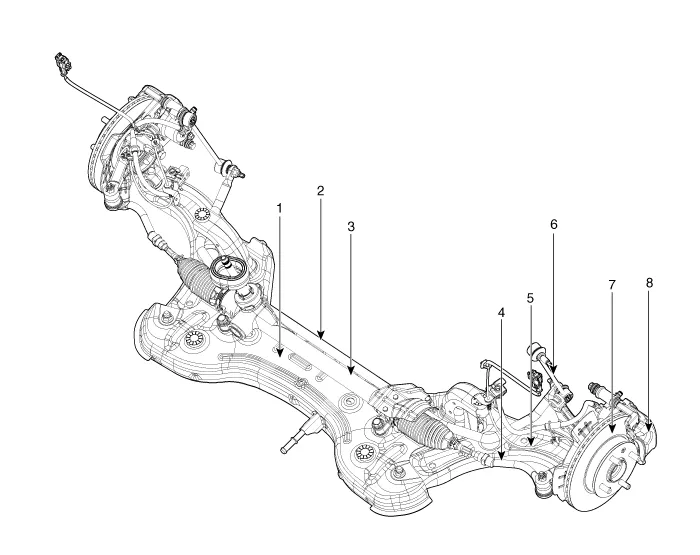

| Components Location |
| 1. Sub frame 2. Stabilizer bar 3. Gear box 4. Tie rod end | 5. Front lower 6. Stabilizer link 7. Brake disc 8. Brake caliper |
Specifications Specification Front Suspension Item Specification Suspension type MacPherson Strut Shock absorber Type General Valve Rear Suspension Item Specification Suspension type Couple Torsion Beam Axle Shock absorber Type General Valve Wheel & Tire Item Specification Front Rear Wheel Aluminum 5.
Components and components location Components Location 1. Lock nut 2. Insulator dust cap 3. Self lock nut 4. Strut insulator 5. Strut bearing 6.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Multimedia Jack
Schematic diagrams Circuit Diagram Description and operation Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack.
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Climate Control Air Filtar
Description and operation Description This has particle filter which eliminates foreign materials and odor. The particle filter includes odor filter as well as conventional dust filter to ensure comfortable interior environment. Repair procedures Replacement 1.
