Kia Picanto: Rear Door / Rear Door Belt Outside Weatherstrip

Kia Picanto JA 2017-2024 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip

Repair procedures

Replacement

1.	Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

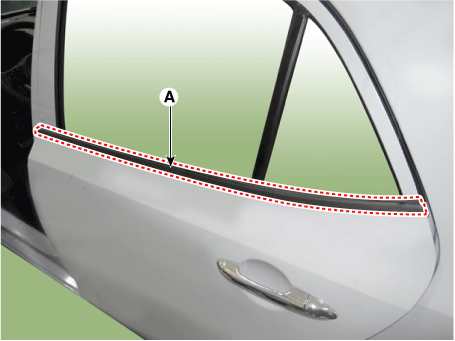

2.	Remove the rear door belt outside weatherstrip (A) after loosening the mounting screw.

Install in the reverse order of removal.

Replace any damaged clips.
