Kia Picanto (JA): Immobilizer System / Antenna Coil
Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. | Remove the steering column upper and lower shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
|

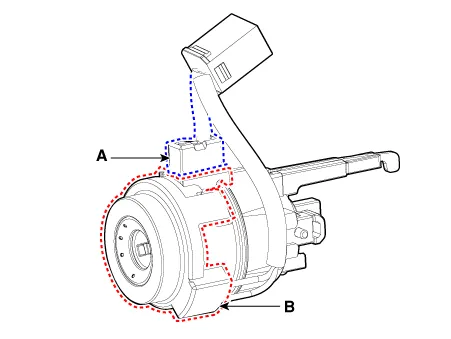

| 4. | Disconnect the 6P connector (A) of the coil antenna and then remove the antenna coil (B) after loosening a screw.
|
| Installation |
| 1. | Install the coil antenna and connect the 6P connector. |
| 2. | Install the steering column upper and lower shroud panel. |
| 3. | Install the crash pad lower panel. |
| 4. | Connect the negative (-) battery terminal. |
