Components and components location

Component Location

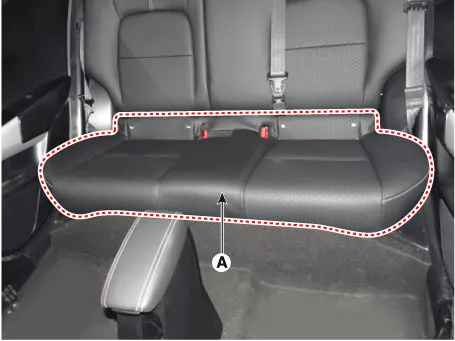

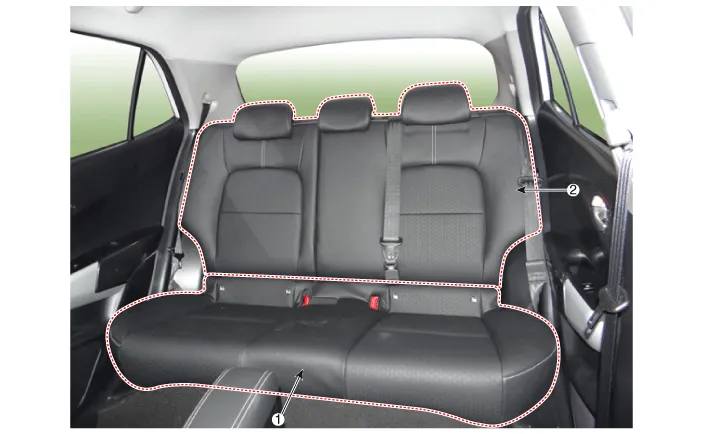

1. Rear seat cushion assembly

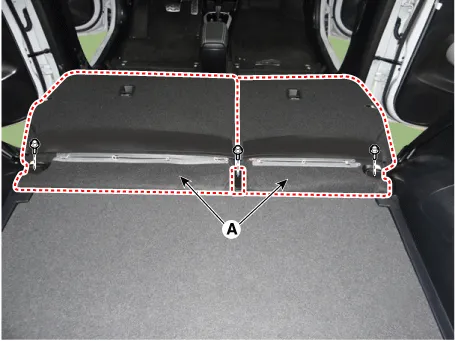

2. Rear seat back assembly

Repair procedures

Replacement

Put on gloves to protect your hands.
1.
Remove the rear seat cushion assembly (A).

2.

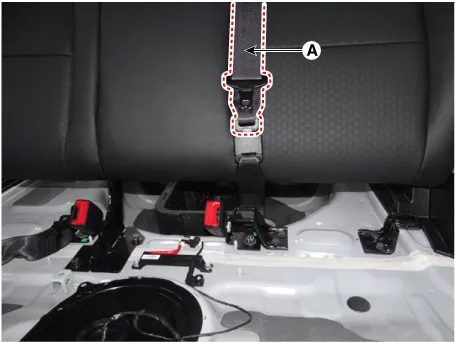

Disconnect the rear center seat belt (A).

3.
Remove the rear seat back assembly (A) after loosening the mounting bolt.
Tightening torque :
16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lbf·ft)

4.
Install in the reverse order of removal.
