Kia Picanto (JA): Rear Door / Rear Door Outside Handle

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle

Components and components location

Component Location

1. Rear door outside handle


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.

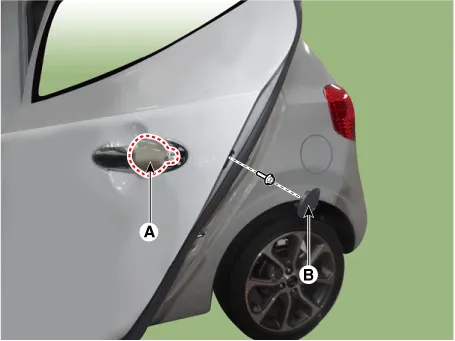

Remove the rear door outside handle cover (A) after loosening the mounting bolt.
Tightening torque :
3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

2.

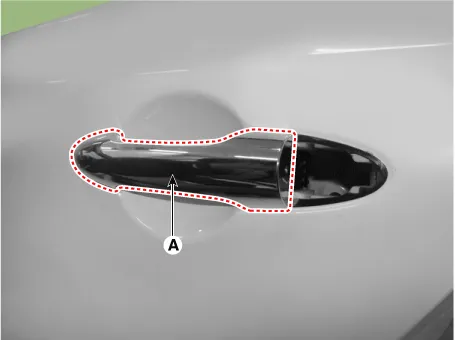

Remove the rear door outside handle (A) by sliding it rearward.

3.
Install in the reverse order of removal.

•
Be sure to install the outside handle pad (A) between the outside handle and the door panel.

•
Make sure that the connector is connected properly.
•
Make sure that the door locks/unlocks and opens/closes properly.
