Kia Picanto (JA): Rear Door / Rear Door Power Window Regulator

Components and components location

Component Location

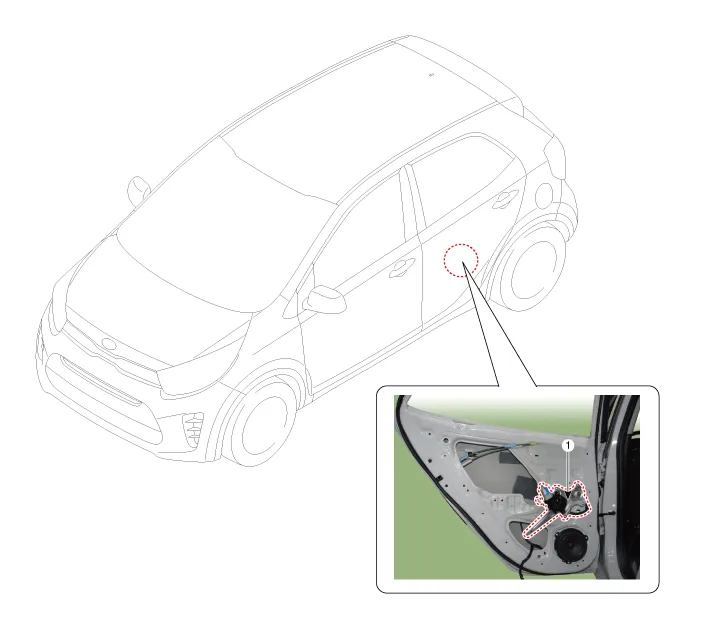

1. Rear door module


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.

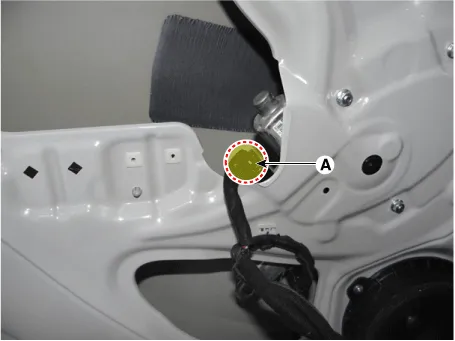

Disconnect the rear door power window motor connector (A).

3.

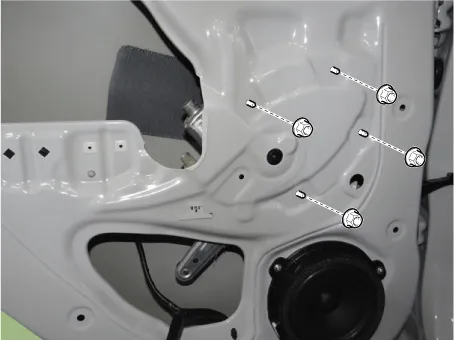

Loosen the rear door power window regulator mounting nuts.
Tightening torque :
3.9 - 5.9 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

4.

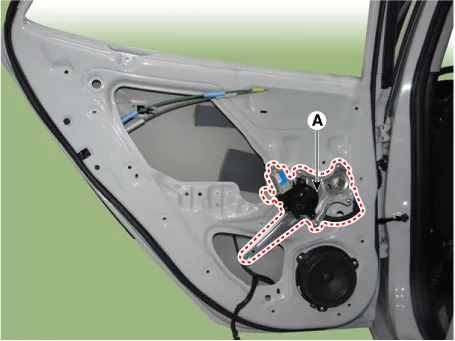

Remove the rear door power window regulator (A).

5.
Install in the reverse order of removal.

•
Check that glass operation is normal.
•
Check the damage glass channel, and replace if necessary.
•
Adjust glass if necessary.
