Components and components location

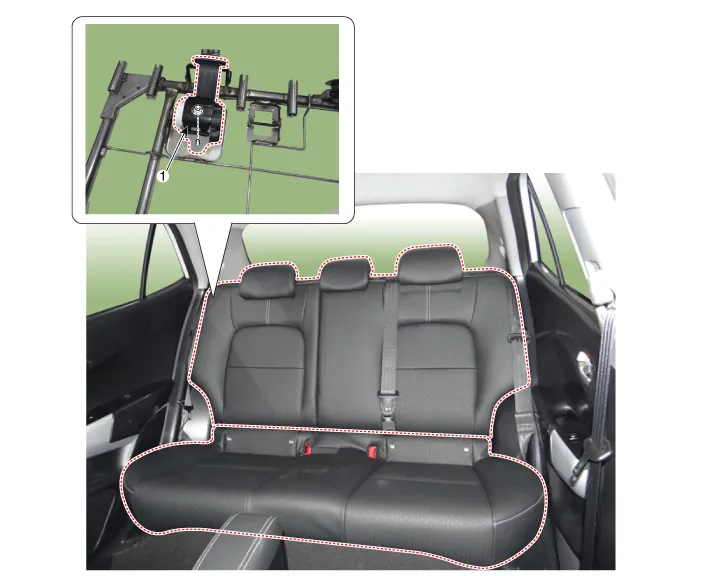

Component Location

1. Rear center seat belt retractor


Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.
1.
Remove the rear seat back dust cover.
(Refer to Rear Seat - "Rear Seat Back Cover")
2.
Remove the rear center seat belt (A) after loosening the retractor mounting bolt.

3.
Install in the reverse order of removal.

•
Make sure the connector is plugged in properly.
•
Replace any damaged clips (or pin-type retainers).
