Kia Picanto (JA): Rear Seat Belt / Rear Seat Belt Buckle

Kia Picanto (JA) 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle

Components and components location

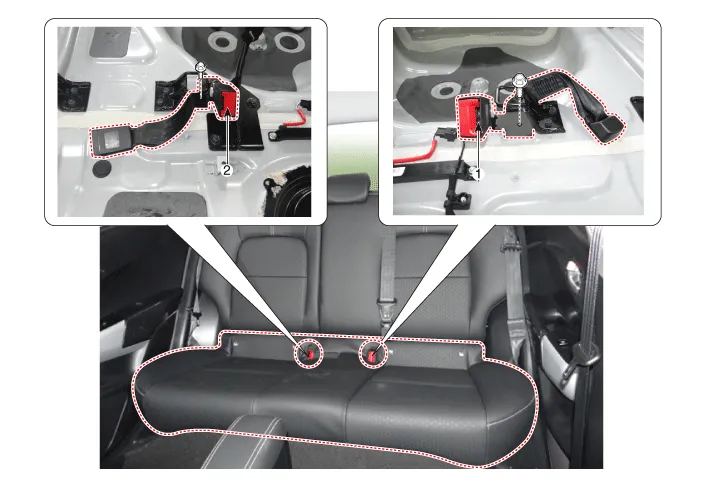

Component Location

1. Rear seat belt buckle [RH]
2. Rear seat belt buckle [LH]

Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

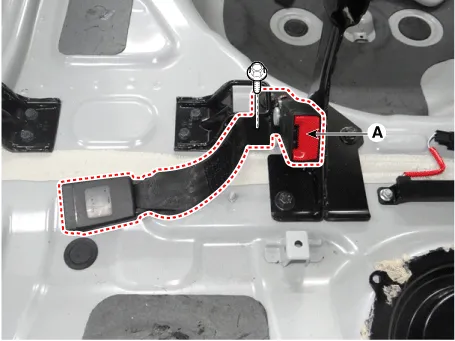

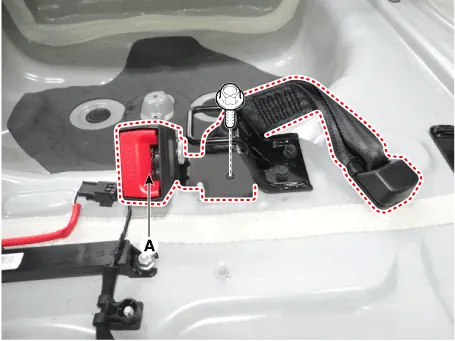

Remove the rear seat belt buckle (A) after loosening the mounting bolt.
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)
[LH]

[RH]

3.
Install in the reverse order of removal.
