Kia Picanto JA: Rear Seat Belt / Rear Seat Belt Retractor

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Retractor

Components and components location

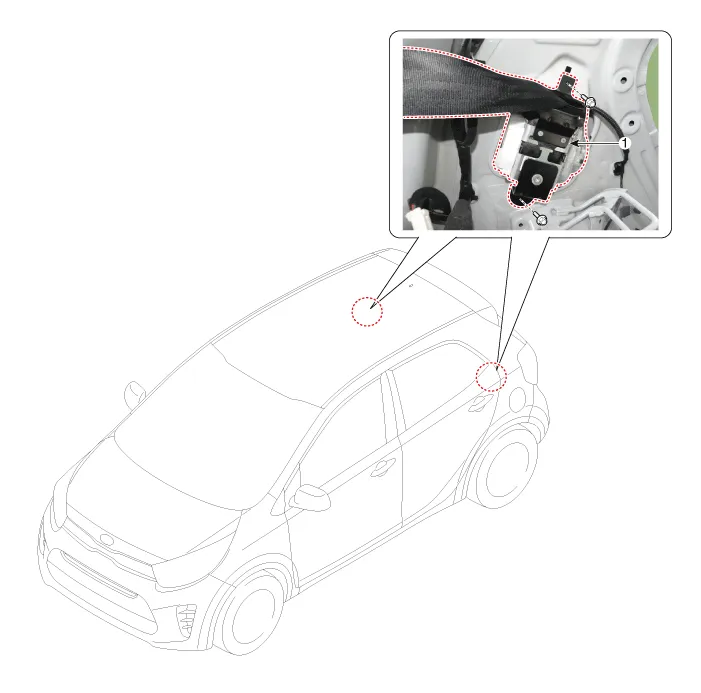

Component Location

1. Rear seat belt retractor

Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.

1.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

Remove the rear seat belt upper anchor (A) after loosening the mounting bolts.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

Remove the rear seat belt retractor (A) after loosening the mounting bolt.

Tightening torque :

Lower : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

Upper : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4.	Disconnect the rear seat belt retractor connector (A).

Install in the reverse order of removal.

•	Make sure the connector is plugged in properly.

•	Replace any damaged clips (or pin-type retainers).

Rear Seat Belt

Rear Center Seat Belt Retractor
