Kia Picanto (JA): Lubrication System / Oil Level Gauge & Pipe
Repair procedures
| Removal and Installation |

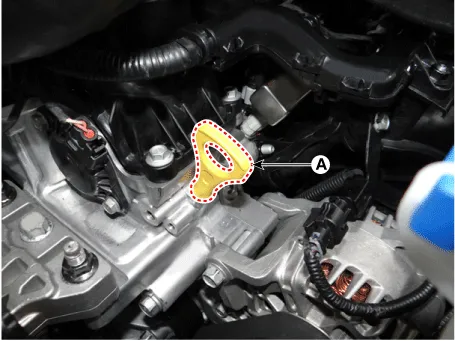

| 1. | Remove the oil level gauge (A).
|
| 2. | Remove the timing chain cover & oil pump assembly.
(Refer to Timing System - "Timing Chain Cover & Oil Pump Assembly")
|

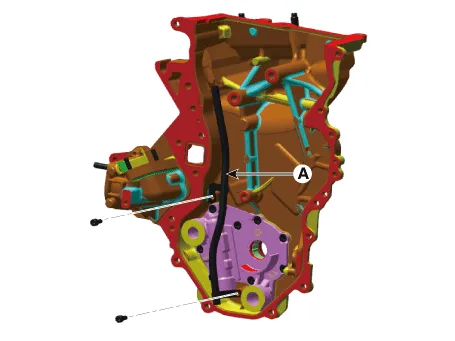

| 3. | Remove the oil level gauge guide (A).
|
| 4. | Install in the reverse order of removal. |
Repair procedures Removal 1.Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - “Engine Room Under Cover”) 2.
Repair procedures Removal and Installation Do not disassemble the oil pump (A) from timing chain cover & oil pump assembly because it is supplied as timing chain cover & oil pump assembly & oil pump assembly.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Temperature Control Actuator
Components and components location Component Location 1. Temerature Control Actuator Description and operation Description 1. Heater unit includes mode control actuator and temperature control actuator. 2. Temperature control actuator is located at the heater unit.
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Heater Core
Repair procedures Replacement 1.Disconnect the negative (-) battery terminal. 2.Remove the heater unit. (Refer to Heater - "Heater Unit") 3.Remove the heater core cover (A) after loosening the mounting screws. 4.Pull out the heater core (A) from the heater unit.
