| Removal |
| 1. | Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - “Engine Room Under Cover”)
|
| 2. | Drain the engine oil.
(Refer to Lubrication System - "Engine Oil")
|

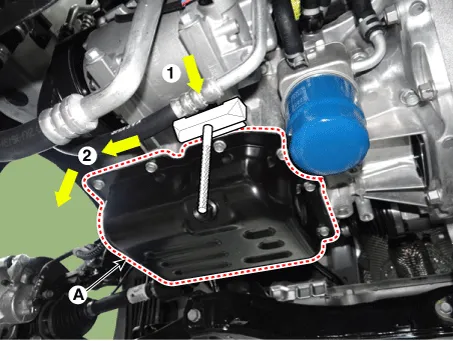

| 3. | Remove the oil pan (A). Insert the blade of SST(09215-3C000) between the ladder frame and the oil pan. Cut out applied sealer and remove the oil pan.
|

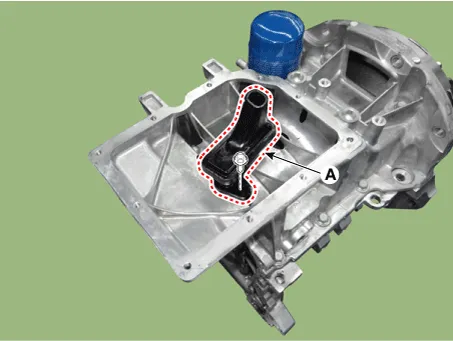

| 4. | Remove the oil screen (A).
|
| Installation |
| 1. | Install the oil screen (A).
|
| 2. | Using a gasket scraper, remove all the old packing material from the gasket surfaces. |
| 3. | Before assembling the oil pan, the liquid sealant should be applied on lower oil pan. Assemble the part within 5 minutes of applying sealant.
|

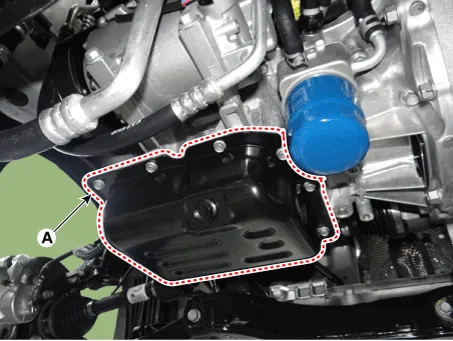

| 4. | Install the oil pan (A). Uniformly tighten the bolts in several passes.
|
| 5. | Install the remaining parts in the reverse order of removal. |
| 6. | Refill with the engine oil.
(Refer to Lubrication System - "Engine Oil")
|
