Kia Picanto JA: Lighting System / License Lamps

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body Electrical System / Lighting System / License Lamps

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

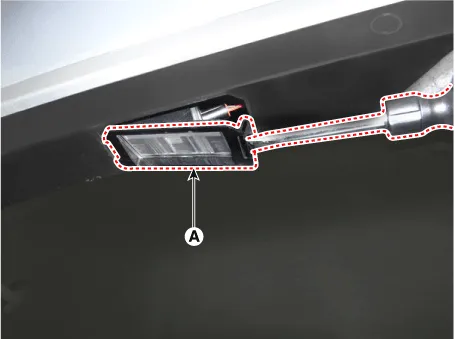

2.	Remove the license lamp assembly (A) after pressing the locking pin.

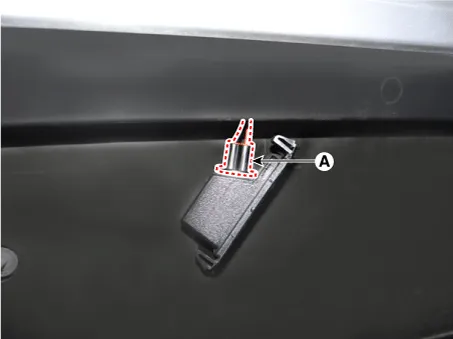

3.	Disconnect the license lamp connector (A).

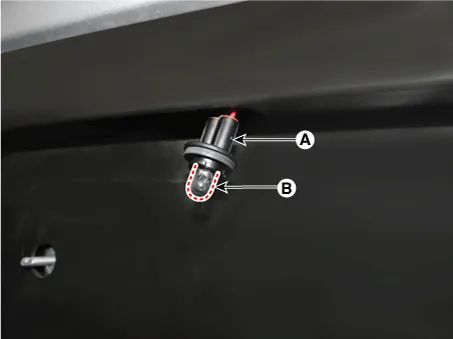

4.	Remove the license lamp bulb (B) after removing the license lamp socket (A).

Installation

1.	Install the license lamp bulb.

2.	Connect the license lamp connector.

3.	Install the license lamp assembly.

4.	Connect the negative (-) battery terminal.
