Kia Picanto (JA): Lighting System / High Mounted Stop Lamp
Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Open the tailgate. |
| 3. | Loosen the high mounted stop lamp mounting nuts (A).
|

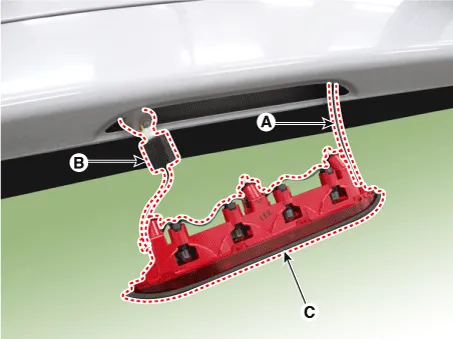

| 4. | Disconnect the washer nozzle (A) and high mounted stop lamp connector (B). |
| 5. | Remove the high mounted stop lamp (C).
|
| Installation |
| 1. | Connect the washer nozzle and high mounted stop lamp connector. |
| 2. | Install the high mounted stop lamp. |
| 3. | Connect the negative (-) battery terminal. |
Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the license lamp assembly (A) after pressing the locking pin.
Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the rear combination lamp (A) after loosening the screws. 3.
