Kia Picanto (JA): Fuel Delivery System / Fuel Pump

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pump

Repair procedures

Inspection
[Fuel pump]
1.
Turn ignition switch OFF and disconnect the negative (-)battery cable.
2.
Remove the fuel pump assembly.
3.

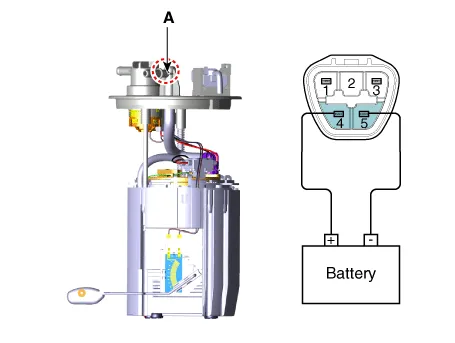

Check motor operation by fuel pump connector (A) connecting power(No.2) and ground(No.4)

Pin No.
Description
1
Fuel sender signal (+)
2
-
3
Fuel sender ground (-)
4
Fuel pump motor (+)
5
Fuel pump motor (-)

[Fuel sender]
1.

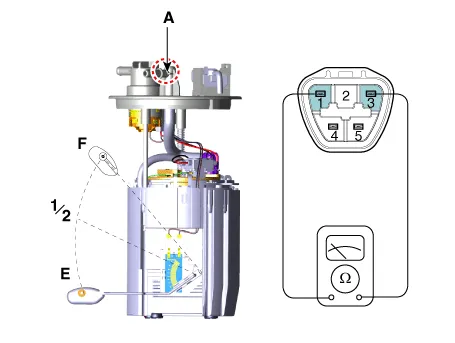

Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.

Pin No.
Description
1
Fuel sender signal (+)
2
-
3
Fuel sender ground (-)
4
Fuel pump motor (+)
5
Fuel pump motor (-)

2.
Also, check that the resistance changes smoothly when the float moves from "E" to "F".
Position
Resistance(Ω)
Capacity (L)
E
298 - 305
3.0
Cluster Warning Lamp
188 - 192
6.6
 1/2
80.4 - 84.4
18.2
F
14 - 16
33.7

Removal
1.
Release the residual pressure in fuel line.
(Refer to Delivery System - “Release Residual Pressure in Fuel Line”)
2.
Remove the rear seat.
(Refer to Body - "Rear Seat Assembly")
3.
Remove the fuel pump service cover (A).

4.

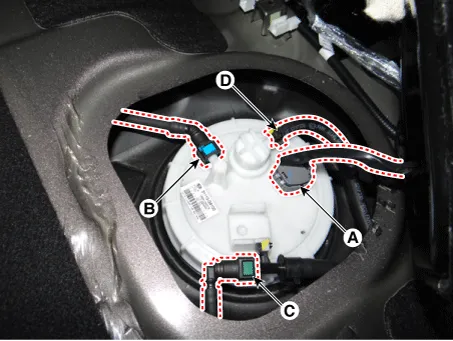

Disconnect the fuel pump connector (A).
5.
Disconnect the fuel feed tube quick-connector (B), the vapor tube quick-connector (C) and the vapor hose (D).

6.

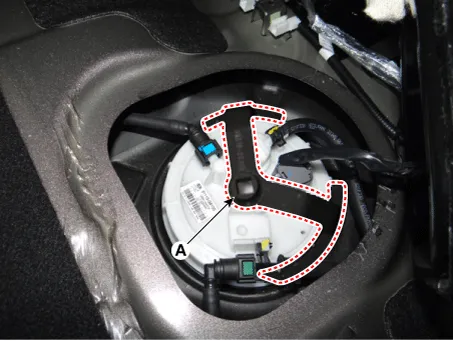

Remove the fuel pump plate cover by using the special service tool (A) [No.: 09310-2S100 or 09310-3P100]

7.

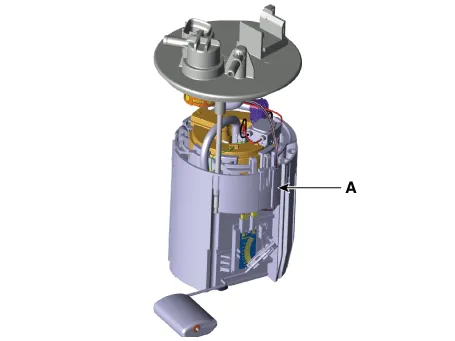

Remove the fuel pump (A).

Installation
1.
Installation is reverse of removal.

Carefully note the fuel pump direction during installation. (Refer to the groove on the fuel tank.)
