Kia Picanto JA: Lighting System / Turn Signal Lamp
Repair procedures
| Removal |
| Door Mirror Turn Signal Lamp |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the mirror (A) from the mirror holder.
|
| 3. | Disconnect the heating connectors (A) from the mirror.
|

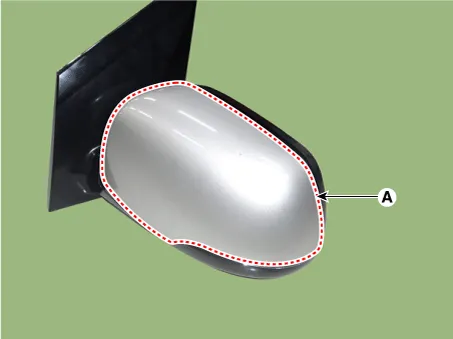

| 4. | Remove the door mirror cover (A) after separating the mounting clips.
|

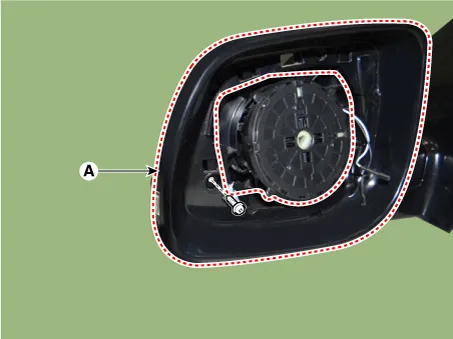

| 5. | Remove the door mirror housing (A) after loosening the mounting screw.
|
| 6. | Remove the door mirror turn signal lamp (A) after loosening the screw.
|
| 7. | Disconnect the connector (A) from the door mirror turn signal lamp (B).
|
| Installation |
| 1. | Install the door mirror turn signal lamp. |
| 2. | Install the door mirror housing. |
| 3. | Install the door mirror cover. |
| 4. | Install the door mirror. |
| 5. | Connect the negative (-) battery terminal. |
