Kia Picanto (JA): Front Seat / Front Seat Shield Inner Cover

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Inner Cover

Components and components location

Component Location

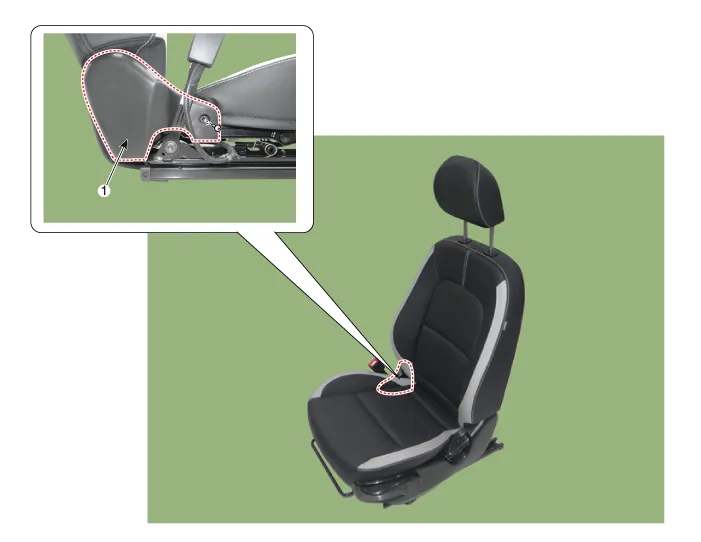

1. Front seat shield inner cover


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Using a remover, remove the front seat shield inner cover (A).

3.
Install in the reverse order of removal.

Replace any damaged clips.
