Kia Picanto (JA): Front Door / Front Door Belt Outside Weatherstrip

Kia Picanto (JA) 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.
Disconnect the outside rear view mirror connector (A) and loosen the nuts (B).

3.

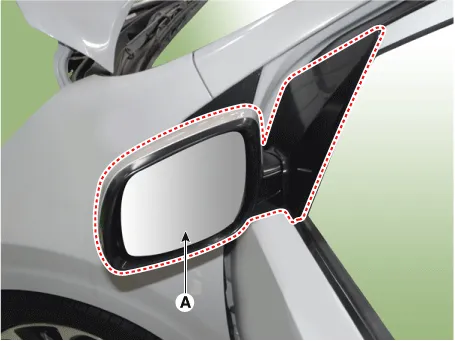

Remove the outside rear view mirror (A).

4.
Remove the front door belt outside weather strip (A).

5.
Install in the reverse order of removal.

•
Check that glass operation is normal.
•
Check the damage glass channel, and replace if necessary.
•
Adjust glass if necessary.
