| Components |

| 1. Clutch pedal assembly | 2. Clutch cable |

| 1. Clutch pedal assembly 2. Ignition lock and clutch switch 3. Master cylinder | 4. Clutch regulator 5. Clutch tube |
| Replacement |
| 1. | Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. | Loosen the clutch cable adjust nut (A) and then separate the clutch cable
|
| 3. | Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 4. | Remove the junction box.
(Refer to Body Electrical System - "Junction Box (Passenger Compartment))
|
| 5. | Disconnect the cluch switch & ignition lock swtich connector (A).
|
| 6. | Pushing the clutch pedal and then remove the clutch cable (A).
|

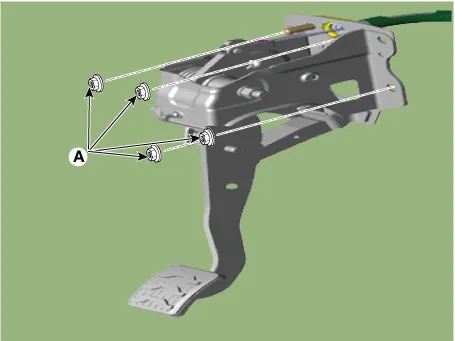

| 7. | Loosen the nuts (A) and then remove the clutch pedal.
|
| 8. | Install in the reverse order of removal. |
| 1. | Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. | Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. | Remove the junction box.
(Refer to Body Electrical System - "Junction Box (Passenger Compartment))
|
| 4. | Disconnect the ignition lock & clutch switch connector.
|
| 5. | Remove the push rod end (A) from the clutch pedal.
|
| 6. | Remove the battery.
G 1.0 T-GDI KAPPA (Refer to Engine Electrical System - "Battery")
|
| 7. | Remove the ECM.
G 1.0 T-GDI KAPPA (Refer to Engine Control / Fuel System - Engine Control Module (ECM)")
|
| 8. | Disconnect the reservoir hose (A) and clutch tube (B) from the clutch master cylinder after removeing the pin (C).
|
| 9. | Remove the clutch master cylinder (A) by turning it clockwise.
|

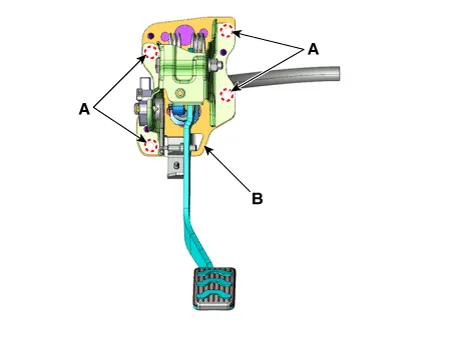

| 10. | Remove the clutch pedal (B) after loosening the mounting nuts (A).
|
| 11. | Install in the reverse order of removal. |
