Kia Picanto (JA): Timing System / Front Oil Seal
Repair procedures
| Replacement |
| 1. | Remove the crankshaft damper pulley.
(Refer to Drive Belt System - "Crankshaft Damper Pulley")
|

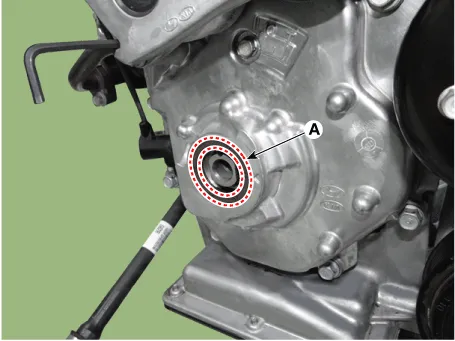

| 2. | Remove the crankshaft front oil seal (A).
|

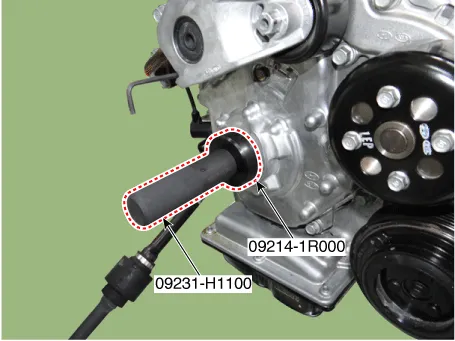

| 3. | Using the SST (09214-1R100, 09231-H1100), install a new front oil seal, apply engine oil on the edge of new oil seal.
|
| 4. | Install the crankshaft damper pulley.
(Refer to Drive Belt System - "Crankshaft Damper Pulley")
|
