Kia Picanto JA: Rear Seat / Rear Seat Cushion Cover

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Cushion Cover

Components and components location

Component Location

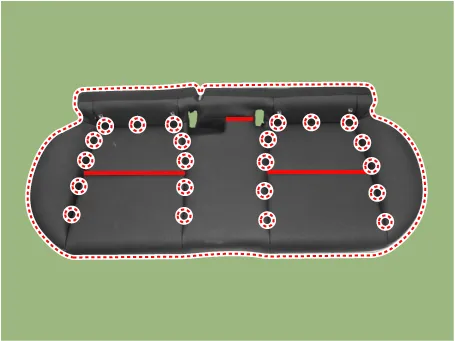

1. Rear seat cushion cover

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the rear seat cushion cover (A) after removing the hog-ring clips on the rear of seat cushion cover. [Back side] [Inside]

Install in the reverse order of removal.

•	Make sure that the connectors are plugged in properly.

•	Replace any damaged clips.

•	To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).

•	Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
