Kia Picanto (JA): Front Bumper / Radiator Grille

Components and components location

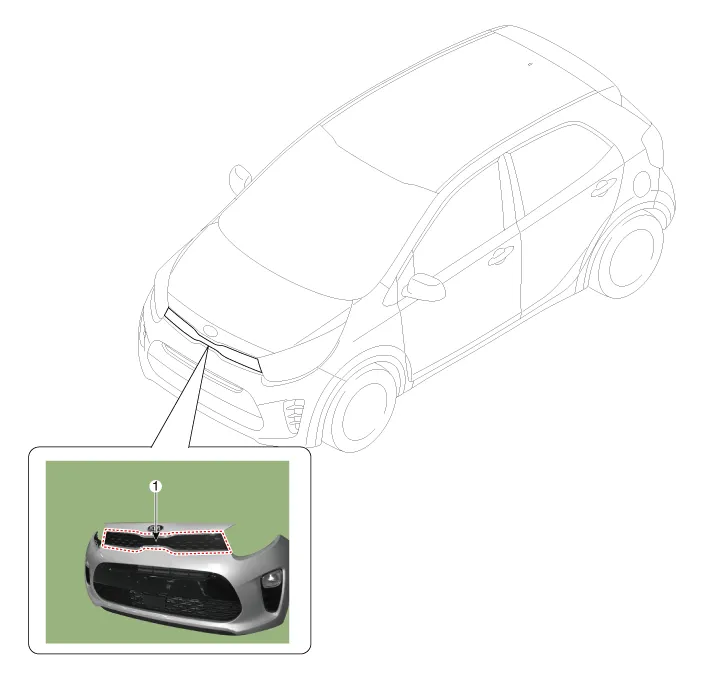

Component Location

1. Radiator Grille


Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Assembly")
2.
Loosen the mounting screws and remove the radiator grille upper cover (A).

3.
Remove the front bumper lower grille (A).

4.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
