Kia Picanto (JA): Headlamp Leveling System / Headlamp Leveling Actuator
Components and components location

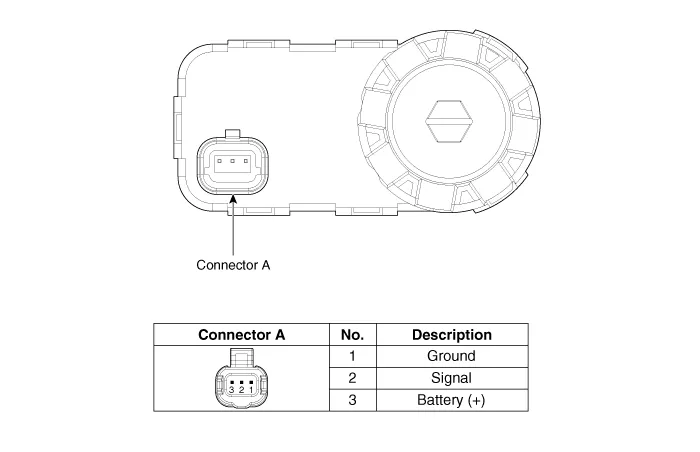

| Components |
Repair procedures
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Remove the headlamp assembly.
(Refer to Lighting System - "Headlamps")
|
| Installation |
| 1. | Install the headlamp assembly. |
| 2. | Connect the negative (-) battery terminal. |
| 3. | Adjust the headlamp in accordance with the headlamp aiming instructions. |
Components and components location Component Location 1. Headlamp leveling actuator 2. Headlamp leveling switch ※ headlamp leveling actuator is built into the headlamp.
Schematic diagrams Circuit Diagram Repair procedures Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the crash pad lower panel.
