Kia Picanto (JA): Front Bumper / Front Bumper Assembly

Components and components location

Component Location

1. Front bumper cover


Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.

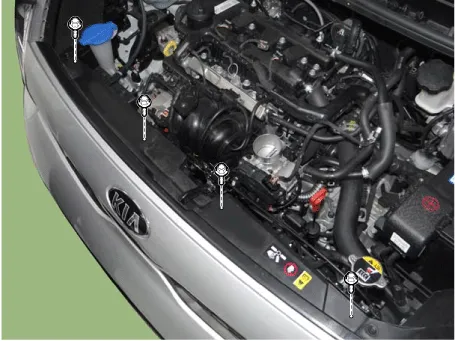

Loosen the radiator upper cover mounting bolts and clips.

2.

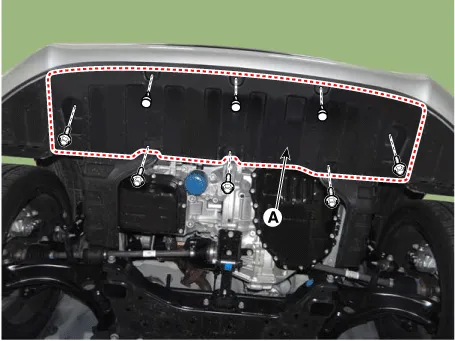

Remove the engine under cover (A).

3.

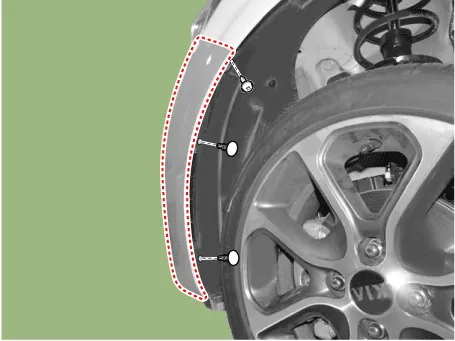

Remove the front wheel guard monting clips (A).

4.

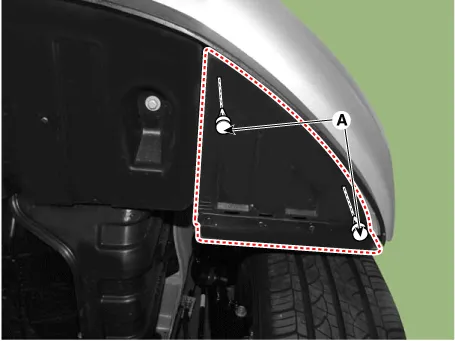

Separate the front bumper side after loosening the front bumper side screws and clips.

Remove the front bumper by lifting up and pulling out the side of the front bumper.

5.
Disconnect the front bumper main connector (A).

6.

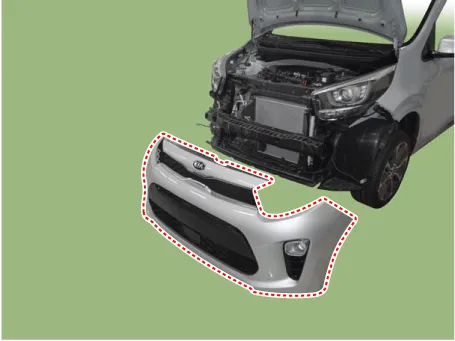

Remove the front bumper cover (A).

7.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.

    Components and components location Components 1. Front bumper cover assembly 2. Front bumper upper side bracket 3. Front bumper side bracket 4.

    Components and components location Component Location 1. Radiator Grille Repair procedures Replacement    Put on gloves to protect your hands.
