Kia Picanto (JA): Front Seat Belt / Front Seat Belt Retractor

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Retractor

Components and components location

Component Location

1. Front seat belt retractor

Repair procedures

Replacement
1.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar Trim")
2.
Remove the front seat belt upper anchor (A) after loosening the mounting bolt.
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)

3.
Remove the front seat belt retractor (A) after loosening the bolts.
Tightening torque :
Lower : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)
Upper : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

4.

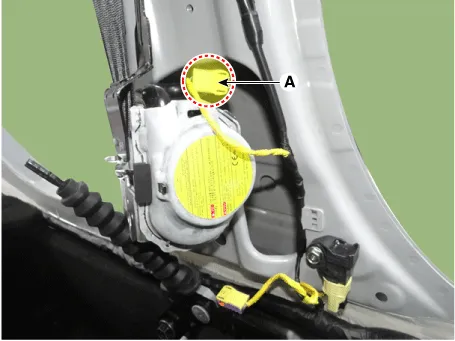

Disconnect the connector (A).

5.
Install in the reverse order of removal.

•
Make sure that the connector is plugged in properly.
•
Replace any damaged clips.

    Components and components location Components 1. Front seat belt retractor 2. Height adjuster 3. Rear seat belt retractor 4. Rear seat belt buckle

    Components and components location Component Location 1. Height Adjuster Repair procedures Replacement 1.Remove the front seat belt upper anchor.
