Kia Picanto (JA): Front Seat / Front Seat Assembly

Components and components location

Component Location

1. Front seat assembly


Repair procedures

Replacement
1.

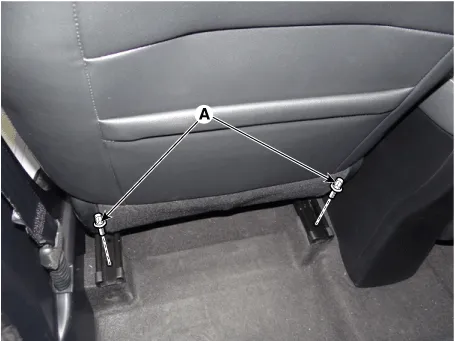

Loosen the front seat mounting bolts (A).
Tightening torque :
49.0 - 58.8 N·m (5.0 - 6.0 kgf·m, 36.2 - 43.4 lb·ft)
[Front]

[Rear]

2.

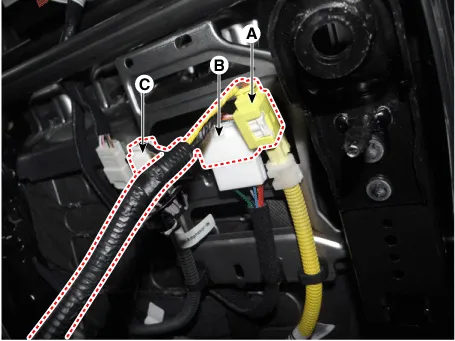

Disconnect the airbag connector (A), seat heater connector (B), front seat belt buckle connector (C).
[Driver side]

[Passenger side]

3.
Install in the reverse order of removal.

SEAT MOUNTING BOLT INSTALLATION PROCEDURE
Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
Set the seat into the foremost position. Check that each slide is locked, and then tighten the rear mounting bolt completely.
Set the seat into the rearmost position. Check that the front mounting bolt is tightened completely.
Check that the seat operates to and fro smoothy and the locking portion locks properly.

    Components and components location Components 1. Front seat inner shield cover 2. Front seat headrest 3. Front seat back covering 4.

    Components and components location Component Location 1. Front seat shield outer cover Repair procedures Replacement    Put on gloves to protect your hands.
