| Circuit Diagram |

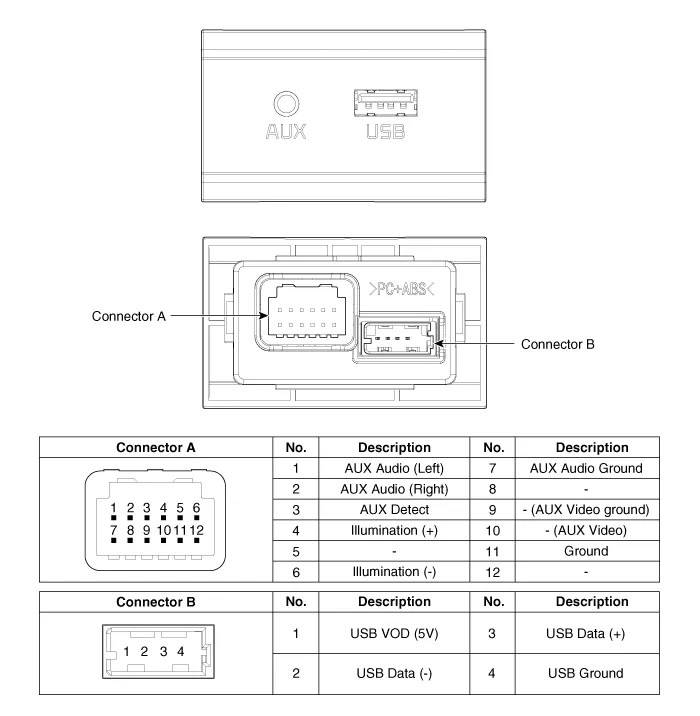

| Description |

| Removal |
Put on gloves to protect your hands. |
|
| 1. | Disconnect the negative (-) battery terminal. |
| 2. | Using a screwdriver or remover, remove the floor console front bezel (A).
|
| 3. | Disconnect the connectors (A) from floor console front bezel.
|
| 4. | Remove the multimedia jack (A) after releasing the fixed hooks.
|
| Installation |
| 1. | Install the multimedia jack. |
| 2. | Connect the connectors from the floor console front bezel. |
| 3. | Install the floor console front bezel. |
| 4. | Connect the negative (-) battery terminal.
|
