Kia Picanto (JA): Front Door / Front Door Window Glass

Kia Picanto (JA) 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Window Glass

Components and components location

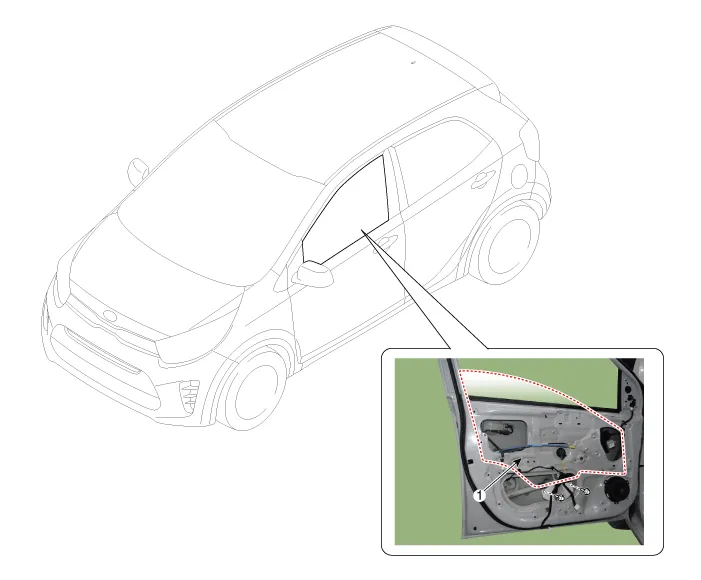

Component Location

1. Front door window glass


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.
Remove the door pull handle mounting support (A) after loosening the screws.

3.
Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.

4.
Remove the front door trim seal (A).

5.
By operating the power window switch, pull down until the window glass mounting bolt is visible.

Be careful not to damage the glass surface.
6.
Remove the front door belt inside weather strip (A).

7.
Disconnect the outside rear view mirror connector (A) and loosen the nuts (B).

8.
Remove the outside rear view mirror (A).

9.
Remove the front door belt outside weather strip (A).

10.

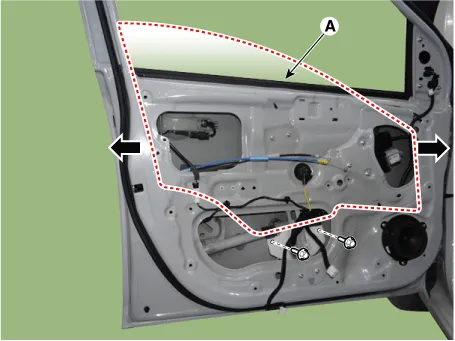

Loosen the mounting bolt, and pull out the front door window glass (A) by tilting it sideways.


•
Use the door switch to align the mounting bolt in the door.
•
If the window motor cannot be operated, remove the motor and align the hole by hand.
11.
Install in the reverse order of removal.

•
Check that glass operation is normal.
•
Check the damage glass channel, and replace if necessary.
•
Adjust glass if necessary.

    Repair procedures Replacement    Put on gloves to protect your hands.    • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

    Components and components location Component Location 1. Front door window glass Repair procedures Replacement    Put on gloves to protect your hands.
