Kia Picanto (JA): Front Door / Front Door Inside Handle

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

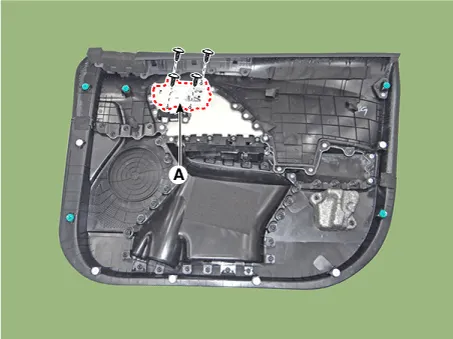

Separate the front door inside handle (A) after loosening the screws.

3.
Remove the front door inside handle (B) after disconnecting the inside handle cage (A).

4.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Make sure the door locks/unlocks and opens/closes properly.
•
Replace any damaged clips.
