Kia Picanto (JA): Front Door / Front Door Power Window Regulator

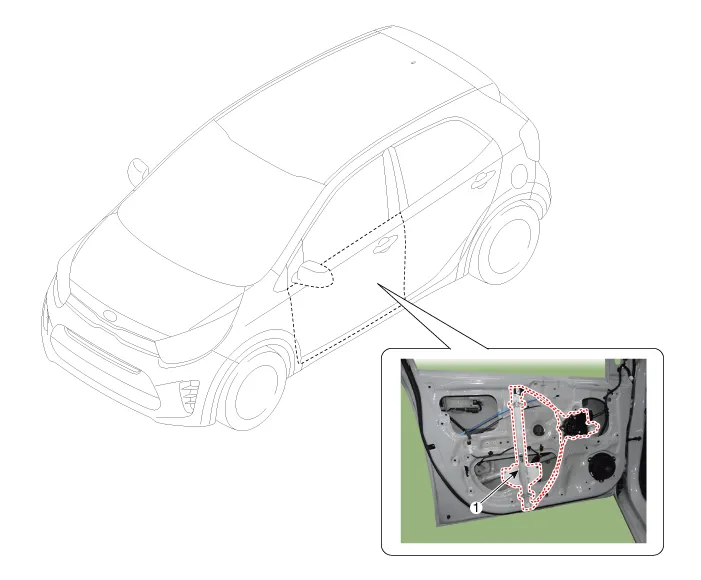

Components and components location

Component Location

1. Front door window glass


Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Remove the front door window glass.
(Refer to Front Door - "Front Door Window Glass")
2.
Disconnect the front door power window regulator connector (A).

3.

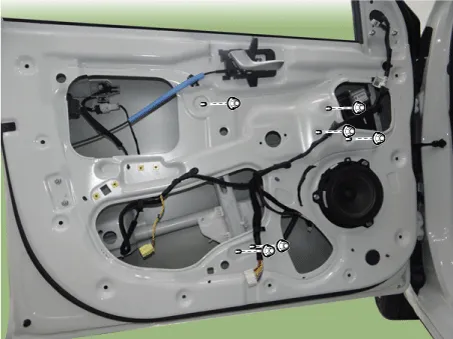

Loosen the front door power window regulator mounting nuts.

4.
Remove the front door power window regulator (A).

5.
Install in the reverse order of removal.

Check that glass operation is normal.
Check the damage glass channel, and replace if necessary.
Adjust glass if necessary.
