Kia Picanto JA: Clutch System / Clutch Release Fork and Clutch Release Bearing
Components and components location
| Components |
| 1. Clutch disc assembly 2. Clutch cover assembly 3. Clutch release bearing 4. Clutch release lever assembly | 5. Return spring 6. Clutch release fork 7. Return clip |
| 1. Clutch release fork 2. Clutch cover assembly | 3. Clutch disk assembly 4. Clutch release bearing |
Repair procedures
| Removal |
| 1. | Remove the transaxle assembly.
G 1.0 MPI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
G 1.2 MPI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
F 1.0 KAPPA FFV (Refer to Manual Transaxle System - "Manual Transaxle")
|
| 2. | Remove the reamer bolt.
|
| 3. | Remove the return clip (A) from the release bearing and then remove the release fork and release bearing.
|
| 1. | Remove the transaxle assembly.
G 1.0 T-GDI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
|

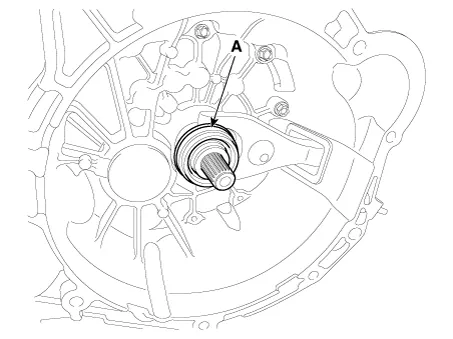

| 2. | Remove the clutch release bearing (A).
|

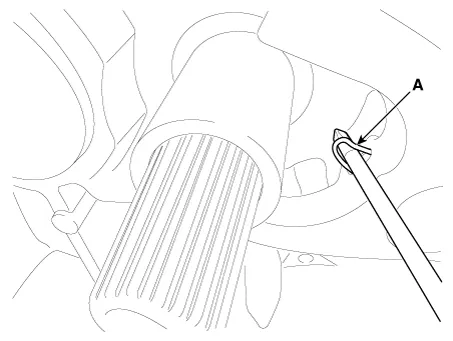

| 3. | Pull the clip (A).
|
| 4. | Remove the clutch release fork (A).
|
| 5. | Remove the boot (A).
|
| Installation |
| 1. | Apply multi purpose grease to release fork assembly.
|
| 2. | Apply multi purpose grease into the groove of the release bearing.
|
| 3. | Install the release bearing and release fork to clutch housing.
|
| 4. | Install the reamer bolt.
|
| 5. | Apply multi purpose grease to on contact surface of lever (A).
|
| 6. |
Clean the surfaces of the flywheel and pressure plate throughly with
fine sandpaper or crocus cloth, and make certain that all oil or grease
has been removed. |
| 7. | Apply a small amount of multi purpose grease to the input shaft splines (A).
|
| 8. | Clean
the surfaces of the flywheel and pressure plate thoroughly with fine
sandpaper or crocus cloth, and make certain that all oil or grease has
been removed. |
| 9. | Install the transaxle assembly.
G 1.0 MPI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
G 1.2 MPI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
F 1.0 KAPPA FFV (Refer to Manual Transaxle System - "Manual Transaxle")
|
| 1. | Install the boot (A).
|
| 2. | Install the clip to the clutch release fork. |
| 3. | Apply to grease in location A, B and C.
|

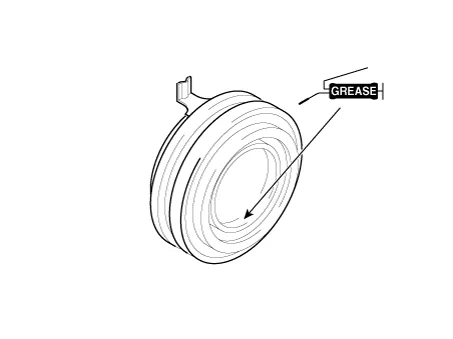

| 4. | Apply the grease to the hole surface of the clutch release bearing all around.
|
| 5. | Install the clutch release fork (B), clutch release bearing (A).
|
| 6. | Install the transaxle assembly.
G 1.0 T-GDI KAPPA (Refer to Manual Transaxle System - "Manual Transaxle")
|
