Kia Picanto (JA): Blower / Blower Motor
Repair procedures
| Inspection |
| 1. | Connect the battery voltage and check the blower motor rotation.
|
| 2. | If the blower motor voltage is not operated well, substitute with a known-good blower motor and check for proper operation. |
| 3. | If the problem is corrected, replace the blower motor. |
| Replacement |
| 1. | Disconnect the negative (-) battery terminal. |

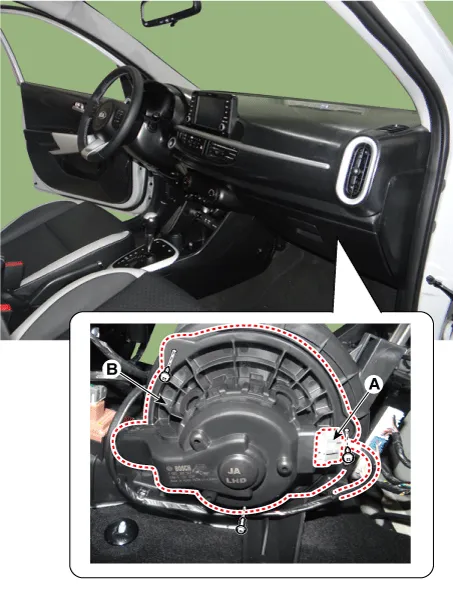

| 2. | Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
|
| 3. | Install in the reverse order of removal. |
Components and components location Component Location 1. Blower Unit Components 1. Intake Actuator 2. Intake Case [Lower] 3. Air Filter 4.
Repair procedures Inspection 1.Measure terminal - to - terminal resistance of blower resistor. 2.measured resistance is not within specification, the blower resistor must be replaced.
Other information:
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Back View Camera System
Components and components location Component Location 1. Back view camera 2. AVN head unit 3. steering angle sensor Description and operation Description 1. To display back of the vehicle to assist the driver, it receives vehicle rearside image signal from the rearview camera and displays it on AVN head unit monitor
Kia Picanto (JA) 2017-2026 Service & Repair Manual: Intake Actuator
Components and components location Component Location 1. Intake Actuator Description and operation Description 1. The intake actuator is located at the blower unit. 2. It regulates the intake door by signal from control unit.
