| Specifications |
|
Items
|
Specifications
| |
| Rated voltage | 5V | |
| Load | Max. 1mA (Relay load) | |
| Illuminations (LUX) | 50 | 1.22 ± 0.27 V |
| 150 | 3.23 ± 0.71 V | |
| Component Location |

| 1. Auto light sensor 2. Headlamps 3. Lighting switch (Auto) | 4. Tail lamps 5. Body Control Module (BCM) |

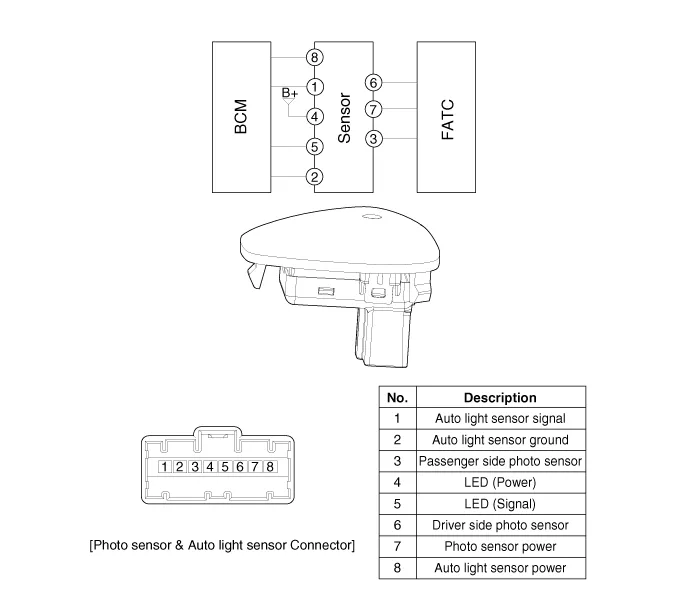

| Circuit Diagram |

| Description |
| 1. | Do not add another device on top of this device. |
| 2. | Be sure to switch to manual during poor visibility climate, such as fog, heavy rain, or cloudy weather. |
| 3. | Illumination
intensity in an actual vehicle is not always constant, and lamp ON/OFF
time may very depending on the climate, season, and surrounding
environment. |
| 4. | Use this system only during sunrise and sunset period, and manually control lamp ON/OFF for general conditions. |
| 5. | Error may occur if light block coating that may change interior illumination is applied. |
