Kia Picanto JA: Audio / Audio Unit

Kia Picanto (JA) 2017-{YEAR} Service & Repair Manual / Body Electrical System / Audio / Audio Unit

Components and components location

Components

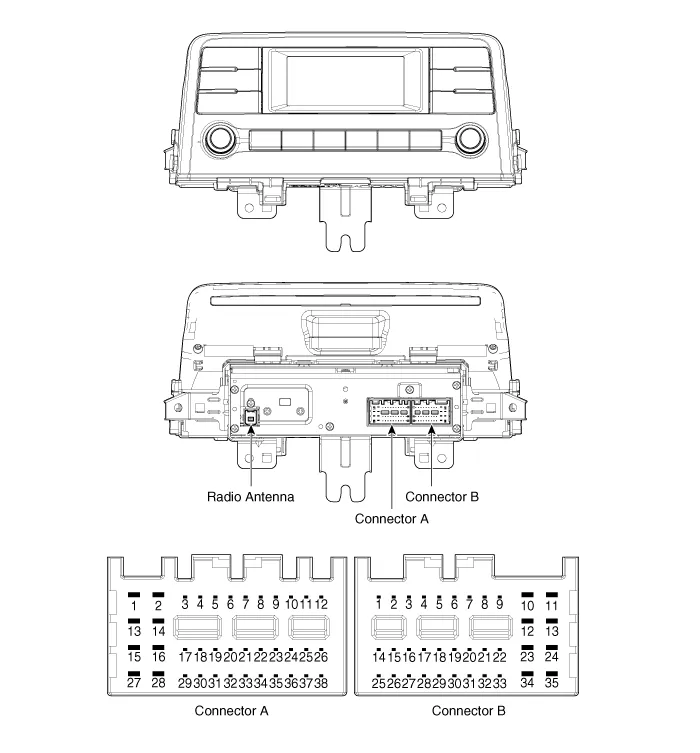

[Radio/MP3/Bluetooth (A Type)]

Connector Pin Information

No.	Connector A	Connector B
1	Rear door left speaker (+)	-
2	Rear door left speaker (-)	MIC (+)
3	USB Ground	-
4	USB Data (+)	Detent
5	USB Data (-)	Antenna power
6	USB VCC	Illumination (+)
7	-	Non E-Call type : - E-Call type : Multmedia-CAN (High)
8	-	-
9	-	-
10	AUX Audio_right input	Battery (+)
11	AUX Detect	Battery (+)
12	Steering wheel remote controller	Ground
13	Front door left speaker (+)	Ground
14	Front door left speaker (-)	-
15	Front door right speaker (-)	MIC (-)
16	Front door right speaker (+)	-
17	-	-
18	-	Vehicle speed
19	-	Illumination (-)
20	-	Non E-Call type : - E-Call type : Multmedia-CAN (Low)
21	-	-
22	-	ACC
23	-	-
24	AUX Audio_left input	-
25	AUX Audio_Ground	-
26	Steering wheel remote controller (Ground)	-
27	Rear door right speaker (-)	-
28	Rear door right speaker (+)	-
29	-	-
30	-	-
31	-	-
32	-	-
33	-	-
34	-	-
35	-	-
36	-
37	-
38	-

[Radio/MP3/Bluetooth (B Type)]

Connector Pin Information

No.	Connector A	Connector B
1	Rear door left speaker (+)	-
2	Rear door left speaker (-)	MIC (+)
3	-	-
4	-	-
5	-	Antenna power
6	Camera power	Illumination (+)
7	Camera video	Non E-Call type : - E-Call type : Multmedia-CAN (High)
8	-	-
9	-	ALT Left_output (-)
10	AUX Audio_right input	Battery (+)
11	AUX Detect	Battery (+)
12	Steering wheel remote controller	Ground
13	Front door left speaker (+)	Ground
14	Front door left speaker (-)	MIC Ground
15	Front door right speaker (-)	MIC (-)
16	Front door right speaker (+)	-
17	-	-
18	-	-
19	-	Illumination (-)
20	Camera power_Ground	Non E-Call type : - E-Call type : Multmedia-CAN (Low)
21	Camera video_Ground	-
22	-	ACC
23	-	-
24	AUX Audio_left input	-
25	AUX Audio_Ground	Reverse
26	Steering wheel remote controller (Ground)	Door open
27	Rear door right speaker (-)	Door unlock
28	Rear door right speaker (+)	Parking brake
29	-	'P' Position
30	-	AV Tail
31	-	-
32	-	-
33	Camera VIN_Shield	IGN1
34	-	-
35	-	-
36	-
37	-
38	Vehicle speed

Repair procedures

Removal

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the center fascia panal. (Refer to Body - "Center Fascia Panel")

3.	Remove the audio head unit (A) after loosening the mounting screws and nut.

Remove the audio head unit after disconnecting the connectors and antenna cable (A).

When the compact disc is stuck, do not remove with force.

Installation

1.	Connect the audio unit connectors and antenna cable.

2.	Install the audio head unit.

3.	Install the center fascia panel.

Connect the negative (-) battery terminal.

•	Make sure the connector are connected in properly.

•	Check the audio system.
