Components and components location

Component Location

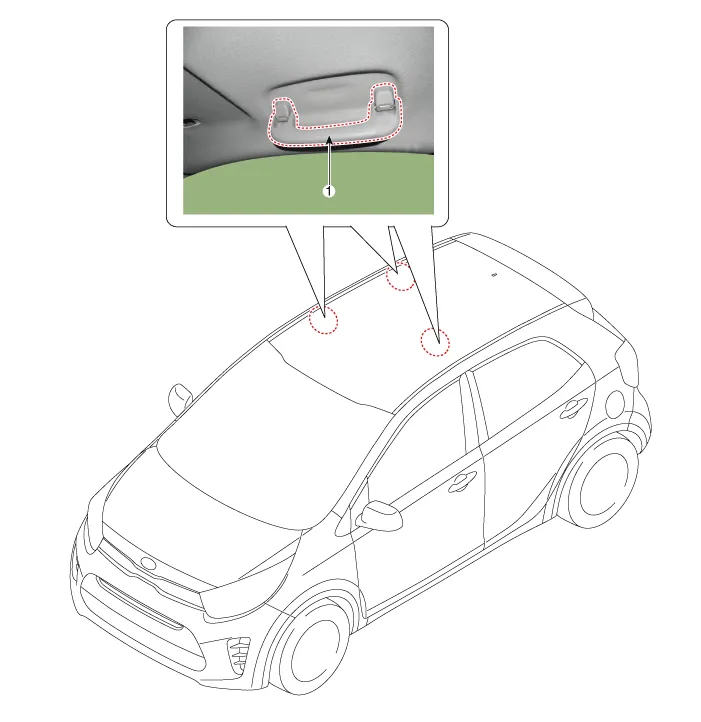

1. Assist handle


Repair procedures

Replacement

Put on gloves to protect your hands.

•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Be careful not to bend or scratch the trim and panels.
1.

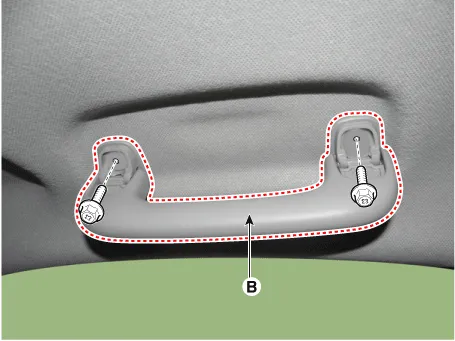

Remove the caps (A) and screws, then remove the assist handle (B).

2.
Install in the reverse order of removal.

    Components and components location Component Location 1. Sun visor 2. Retainer Repair procedures Replacement    Put on gloves to protect your hands.

    Components and components location Component Location 1. Roof Trim Assembly Repair procedures Replacement    Put on gloves to protect your hands.
