Kia Picanto (JA): Roof Trim / Sun visor

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Body (Interior and Exterior) / Roof Trim / Sun visor

Components and components location

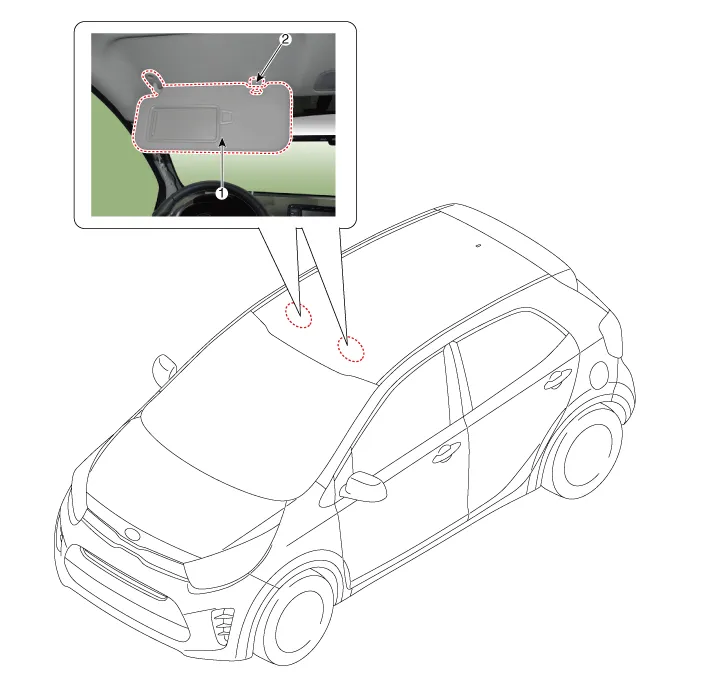

Component Location

1. Sun visor

2. Retainer

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the retainer (A) after loosening the screw.

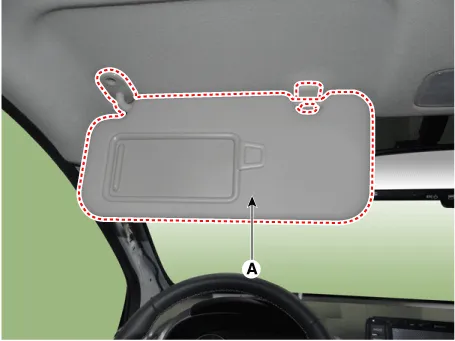

2.	Remove the sun visor (A) after loosening the screws.

Install in the reverse order of removal.

Replace any damaged clips.
