Kia Picanto: Rear Door / Rear Door Latch

Kia Picanto JA 2017-2025 Service & Repair Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch

Components and components location

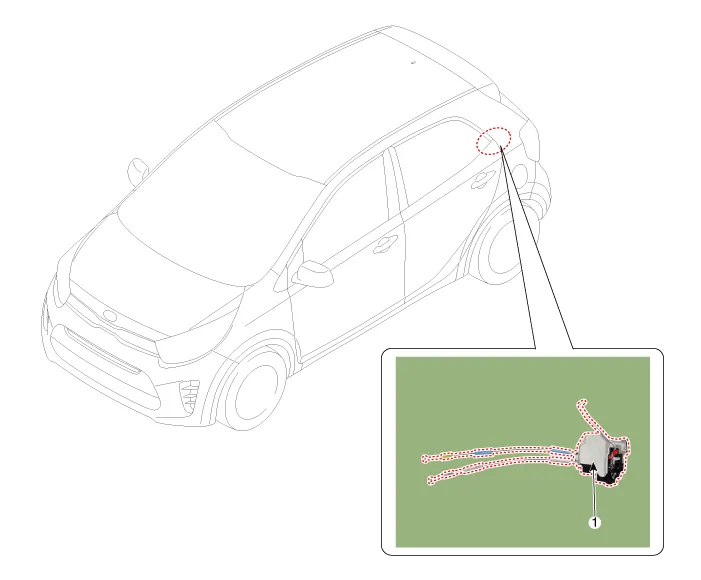

Component Location

1. Rear door latch


Repair procedures
Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Loosen the rear door outside handle base mounting bolt (A).

3.
Disconnect the rear door latch connector (A).

4.
Remove the rear door latch (B) after loosening the mounting screw (A).

5.
Install in the reverse order of removal.

Make sure that the connector is connected properly.
Make sure that the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
