Kia Picanto (JA): Features of your vehicle / Windows

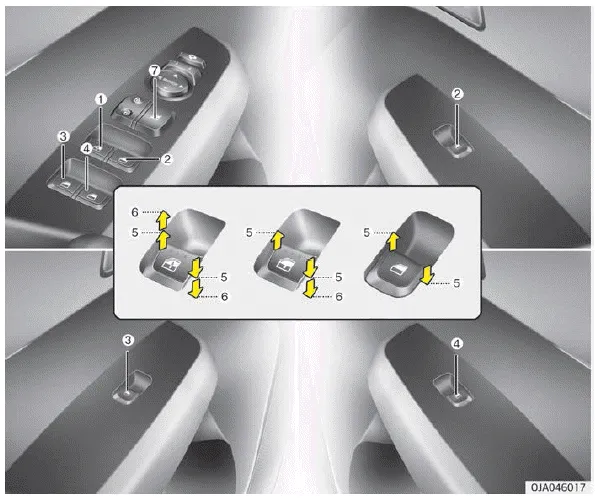

1. Driver’s door power window switch
2. Front passenger’s door power window
switch
3. Rear door (left) power window
switch
4. Rear door (right) power window
switch
5. Window opening and closing
6. Automatic power window up * /
down
7. Power window lock switch
NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.
Opening the tailgate The tailgate is locked or unlocked when all doors are locked or unlocked with the transmitter (or smart key) or central door lock switch.
The ignition switch must be in the ON position for power windows to operate. Each door has a power window switch that controls the door's window. The driver has a power window lock switch which can block the operation of rear passenger windows.
