Kia Picanto (JA): ISG (Idle Stop & Go) System / Seat belt switch

Kia Picanto (JA) 2017-2026 Service & Repair Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Seat belt switch

Components and components location

Component Location

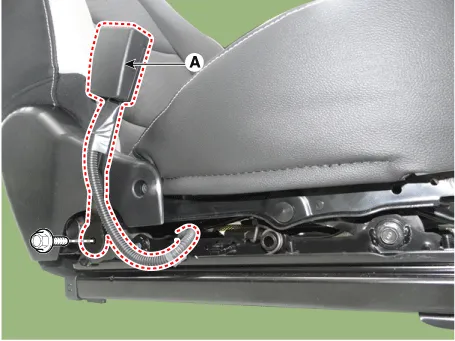

1. Front seat belt buckle


Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

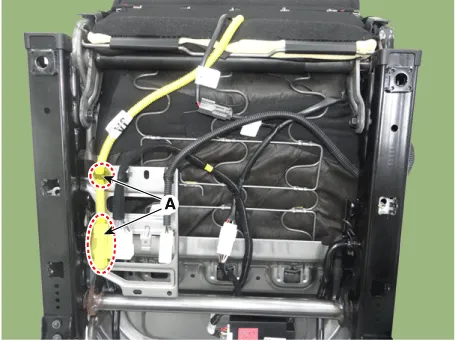

Disconnect the front seat belt wiring mounting clips (A).

3.
Remove the front seat belt buckle (A) after loosening the mounting bolt.
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

4.
Install in the reverse order of removal.

•
Make sure that the connector is plugged in properly.
•
Replace any damaged clips.

    Description and operation Description Via the seat belt/Door switch, the ISG function can detect that the driver has fastened the seat belt/door.

    Description and operation Description The hood switch is included as the influencing factors in the calculation of the ISG function. If the hood is open, the engine must not be started or stopped by the ISG function for safety reasons.
