Kia Picanto (JA): ISG (Idle Stop & Go) System / Door switch

Kia Picanto (JA) 2017-2025 Service & Repair Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Door switch

Description and operation

Description

Via the seat belt/Door switch, the ISG function can detect that the driver has fastened the seat belt/door. If the driver has not fastened the seat belt/door, the ISG function reacts as follows. If the seat belt or door is opened, the engine must not be started or stopped by the ISG function for safety reasons.

Repair procedures

Inspection

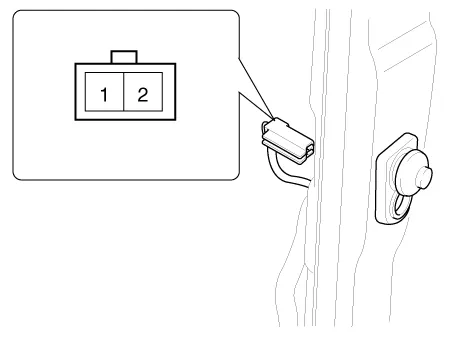

1.	Remove the center pillar lower trim. (Refer to Body - "Center Pillar Trim")

2.	Check for continuity between the terminal.

❮Brake switch

Components and components location Components 1. Brake member assembly 2. Stop lamp switch 3. Brake pedal arm assembly 4. Brake pedal pad Troubleshooting Troubleshooting 1.

Seat belt switch❯

Components and components location Component Location 1. Front seat belt buckle Repair procedures Replacement 1.Remove the front seat assembly.
